T-grids for ceiling



T-grid made of GI & PPGI



T-grids are made of Hot Dipped Galvanized Steel Strips and Pre-painted Steel Strips.

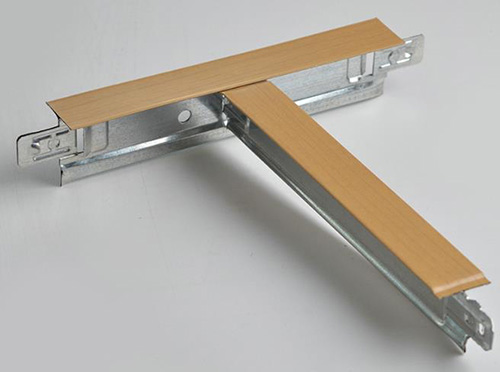

Except PPGI surface, we also have PVC filmed like wood, stone surface.

Packing: Export standard carton.

Quantity in carton in 20’GP container:

Main tee: 25pieces/carton. 7500pieces/20’GP.
Long cross tee: 50pieces/carton. 37500pieces/20’GP.
Short cross tee: 75pieces/carton. 37500pieces/20’GP.
Wall angle: 50pieces/carton. 7500pieces/20’GP.

Detal Size



Item name Length(Metric/British) Height & Width (mm) Thickness(mm)
24mm Flat Surface T grid
Main tee 3600mm/3660mm 38*24mm/32*24mm 0.23mm-0.4mm
Long Cross tee 1200mm/1220mm 26*24mm/24*24mm 0.23mm-0.4mm
Short Cross tee 600mm/610mm 26*24mm/24*24mm 0.23mm-0.4mm
Wall angle 3000mm/3050mm 22*20mm/22*22mm/24*24mm 0.23mm-0.5mm
15mm Flat surface T grid 3600mm/1200mm/600mm 3660mm/1220mm/610mm 32*15mm 0.23mm-0.4mm
Groove surface t grid 3600mm/1200mm/600mm 3660mm/1220mm/610mm 32*24mm,35*14.5mm 0.23mm-0.5mm

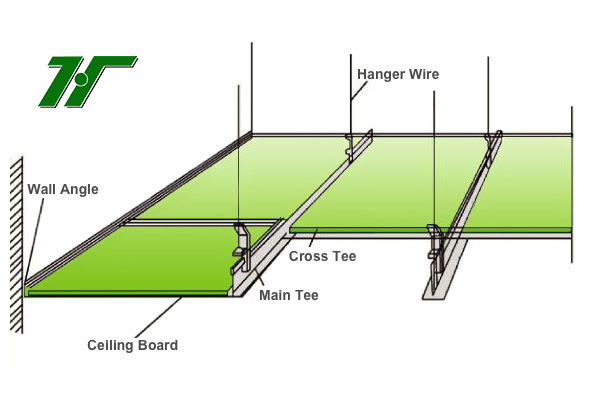

Suggested Installation Ratio

Product Introduction Specification Reference Ratio
 (m2)
Main tee 3600mm 0.27pcs/Unit
Cross tee 1200mm 1.35pcs/Unit
Cross tee 600mm 1.35pcs/Unit
Wall angle 3000mm 0.20pcs/Unit

Square meters: 30000 m2
Main tee: 270 ctns
Long cross tee: 810 ctns
Short cross tee: 540 ctns
Wall angle: 120 ctns
